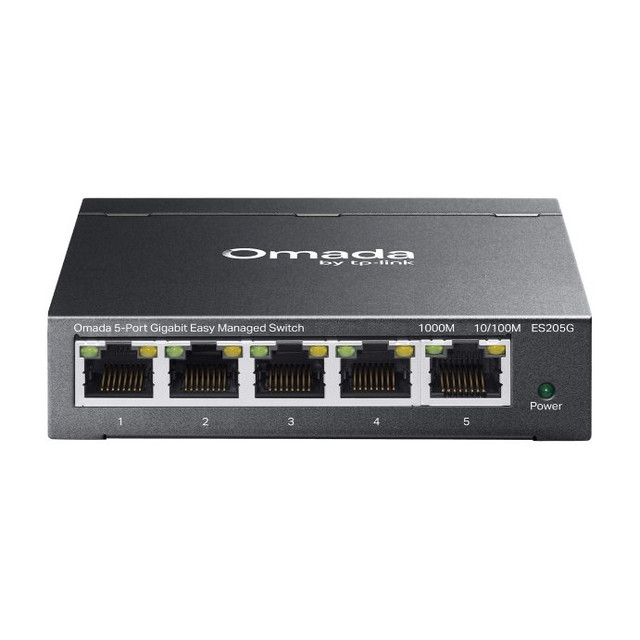

Omada 5-Port Gigabit Easy Managed Switch, Fanless Metal Case, Desktop or Wall Mount
SKU TPL-ES205G Model ES205G
- 5 Gigabit RJ45 ports in a fanless metal case, desktop or wall mount
- 802.1Q VLANs, IGMP snooping and loopback detection for small networks
- Port isolation, port mirroring, static LAG and per-port rate limiting
- Adopts into Omada with zero-touch provisioning, or runs standalone by web GUI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports5 x Gigabit RJ45
- MountDesktop or wall
- Size3.9 x 3.9 x 1.0 in
- CompatibilityOmada controller managed
The Omada ES205G is a 5-port Gigabit Easy Managed switch for a small closet, a desk or an AP drop that needs VLANs and loop protection without stepping up to a Smart switch. It supports plug-and-play for instant connectivity, and adopts into the same Omada site as the gateway and access points.
Built for small wired and wireless jobs
All five ports are 10/100/1000 RJ45 with auto MDI/MDIX. The metal case is fanless, sits on a desk or mounts on a wall, and has a security lock slot. 802.1Q VLANs, IGMP snooping and loopback detection are built in, with QoS and port mirroring available when a job calls for them.
Key features
- 5 Gigabit RJ45 ports: an uplink plus drops for a small room, with auto MDI/MDIX
- VLANs and IGMP snooping: 802.1Q tagging with up to 32 VLAN groups keeps traffic apart
- Loop protection: loopback detection catches a patching mistake before it takes the site down
- Fanless metal case: silent in use, desktop or wall mount, with a physical security lock slot
- Omada management: zero-touch provisioning and batch firmware upgrades through the cloud controller
System requirements
Uses the included 5V DC external power adapter (100-240V AC input). This model has no PoE output. Centralized management needs an Omada Cloud-Based, Hardware or Software Controller on built-in version 6.1.0 or later; zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its web interface.
Specifications
| SKU | TPL-ES205G |
|---|---|
| Brand | TP-Link |
| Form factor | 5-port Gigabit Easy Managed switch, desktop or wall mount |
| Communication | Ethernet / IP |
| Power input | External adapter, 5V DC / 0.6A, 100-240V AC input (included) |
| Power consumption | 2.6 W max at 110V |
| Management | Easy Managed |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 5 x Gigabit RJ45 |
| Switching capacity | 10 Gbps |
| Packet forwarding rate | 7.4 Mpps |
| MAC address table | 8K |
| Jumbo frame | 15 KB |
| VLANs | 802.1Q tag VLAN, up to 32 VLAN groups (4K VID) |
| L2 features | Static link aggregation (up to 2 groups, 4 ports per group), loopback detection, 802.3x flow control, port mirroring (one-to-one, many-to-one), port statistics, LLDP, 802.3az EEE |
| Security | Port isolation, storm control (broadcast, multicast, unknown unicast), physical security lock slot |
| Controller management | Omada Cloud-Based, Hardware and Software Controller (built-in version 6.1.0 or later); Omada app |
| Communication notes | Web GUI, DHCP client, cable diagnostics, LLDP, IGMP v1/v2/v3 snooping with fast leave, port-based/802.1p/DSCP QoS with 8 queues and WRR, ONVIF in controller mode |
| Cooling | Fanless |
| Surge protection | ±6 kV common mode on Ethernet ports |
| Mounting | Desktop or wall mount |
| Dimensions | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Operating temp | 23°F to 104°F (-5°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | ES205G, power adapter, mounting feet, installation guide |
