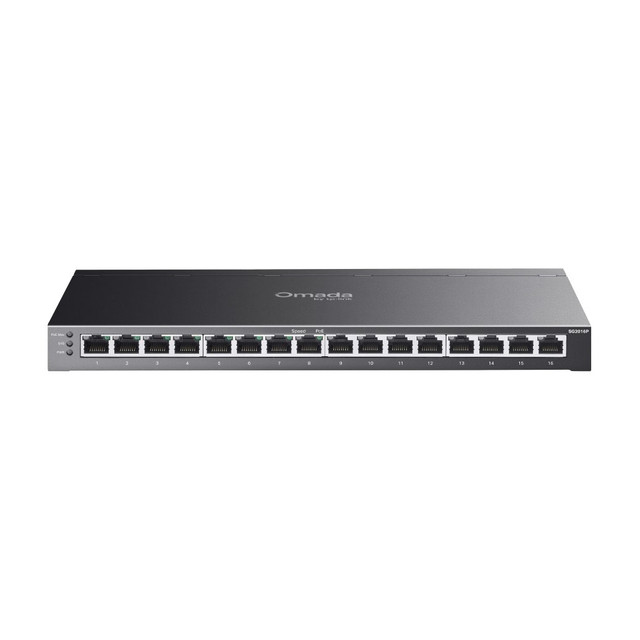

Omada 16-Port Gigabit Smart PoE+ Switch, 8 PoE+ Ports, 120 W, Desktop or Wall Mount
SKU TPL-SG2016P Model SG2016P
- 16 Gigabit ports, eight of them 802.3af/at PoE+ from a 120 W budget
- Ports 9 to 16 are data only, handy for uplinks, NVRs and workstations
- VLANs, ACLs, 802.1X and static routing in a fanless steel case
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports16 x Gigabit, 8 with PoE+
- PoE120 W, 802.3af/at
- MountDesktop or wall
- Size11.3 x 4.4 x 1.0 in
The Omada SG2016P is a 16-port Gigabit Smart switch with eight PoE+ ports and a 120 W budget, a good fit for a mid-size camera and access point deployment where a rack is overkill. It is managed in the same Omada site as the gateway and APs.
Built for mixed PoE and data closets
Ports 1 to 8 supply 802.3af/at PoE+ for cameras, APs and phones, and ports 9 to 16 stay data only for uplinks, NVRs and workstations. 802.1Q VLANs, static routing, a DHCP server, 802.1X and ACLs keep camera, voice and guest traffic segmented. The fanless steel case sits on a desk or mounts on a wall.
Key features
- 8 PoE+ ports, 120 W total: 802.3af/at for cameras, APs and IP phones
- 16 Gigabit ports: with the extra eight left for uplinks, NVRs and workstations
- VLANs, static routing and ACLs: up to 4K VLAN groups and 32 IPv4/IPv6 static routes
- Fanless steel case: silent in an office, desktop or wall mount
- Omada management: zero-touch provisioning and batch firmware upgrades through the cloud controller
System requirements
Uses the included 53.5V DC external power adapter. Powered devices must be 802.3af or 802.3at compliant. Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI.
Specifications
| SKU | TPL-SG2016P |
|---|---|
| Brand | TP-Link |
| Form factor | 16-port Gigabit Smart PoE+ switch, desktop or wall mount |
| Communication | Ethernet / IP |
| Power input | External adapter, 53.5V DC / 2.43A (included) |
| Power consumption | 147.0 W max at 110V with 120 W of PoE load |
| Management | Smart |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 16 x Gigabit RJ45 (ports 1-8 PoE+) |
| PoE budget | 120 W total |
| PoE features | 802.3af/at on ports 1-8 |
| Switching capacity | 32 Gbps |
| Packet forwarding rate | 23.81 Mpps |
| MAC address table | 8K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLAN groups, MAC, protocol and voice VLAN, GVRP |
| L2+ features | 32 IPv4/IPv6 static routes, DHCP server and relay, link aggregation with LACP, STP/RSTP/MSTP, loopback detection |
| Security | 802.1X, RADIUS AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI through Telnet, SNMP v1/v2c/v3, RMON, LLDP/LLDP-MED, IGMP snooping, IPv6 |
| Cooling | Fanless |
| Mounting | Desktop or wall mount |
| Dimensions | 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm) |
| Operating temp | 23°F to 104°F (-5°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG2016P, power adapter, power cord, rubber feet, installation guide |
