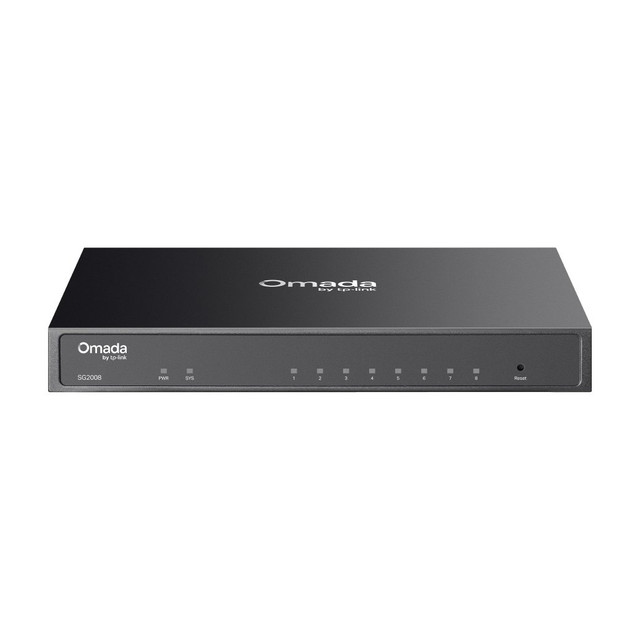

Omada 8-Port Gigabit Smart Switch, Desktop or Wall Mount, PoE-Powered Option, Fanless
SKU TPL-SG2008 Model SG2008
- 8 Gigabit ports with 4K VLAN groups, ACLs, 802.1X and static routing
- Powered by the included 12V adapter or by PoE in on one port
- Fanless steel case with a security lock slot, desktop or wall mount
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports8 x Gigabit RJ45
- Power12V adapter or PoE in
- MountDesktop or wall
- Size8.2 x 4.9 x 1.0 in
The Omada SG2008 is an 8-port Gigabit Smart switch for small closets and desktop installs, with VLANs, static routing and ACLs that an unmanaged switch cannot do. It runs from the included 12V adapter, or from a PoE source on one port when there is no outlet nearby.
Built for small sites that still need VLANs
Segment cameras, voice and guest traffic with 802.1Q VLANs, route between them with static routes and the built-in DHCP server, and lock down ports with 802.1X and ACLs. The steel case is fanless and includes a physical security lock slot, and the switch sits on a desk or mounts on a wall. In an Omada site it is adopted by the same controller as the gateway and APs.
Key features
- Eight Gigabit ports: one of them accepts PoE in so the switch can be powered without a nearby outlet
- VLANs and static routing: up to 4K VLAN groups and 32 IPv4/IPv6 static routes
- Fanless steel case: silent in an office, with a physical security lock slot
- Desktop or wall mount: rubber feet included for the desk
- Omada management: zero-touch provisioning and batch firmware upgrades through the cloud controller
System requirements
Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI.
Specifications
| SKU | TPL-SG2008 |
|---|---|
| Brand | TP-Link |
| Form factor | 8-port Gigabit Smart switch, desktop or wall mount |
| Communication | Ethernet / IP |
| Power input | 12V DC / 1A adapter (included), or PoE in on one RJ45 port |
| Power consumption | 6.2 W max at 110V |
| Management | Smart |
| Port speed | Gigabit |
| Works with | Omada |
| Ethernet ports | 8 x Gigabit RJ45 (one port accepts PoE in) |
| PoE features | One RJ45 port accepts PoE in as an alternative to the adapter |
| Switching capacity | 16 Gbps |
| Packet forwarding rate | 11.9 Mpps |
| MAC address table | 8K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLAN groups, MAC, protocol and voice VLAN, GVRP |
| L2+ features | 32 IPv4/IPv6 static routes, DHCP server and relay, link aggregation with LACP, STP/RSTP/MSTP, loopback detection |
| Security | 802.1X, RADIUS AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI through Telnet, SNMP v1/v2c/v3, RMON, LLDP/LLDP-MED, IGMP snooping, IPv6 |
| Cooling | Fanless |
| Surge protection | ±6 kV |
| Mounting | Desktop or wall mount |
| Dimensions | 8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm) |
| Operating temp | 23°F to 104°F (-5°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG2008, power adapter, mounting feet, installation guide |
