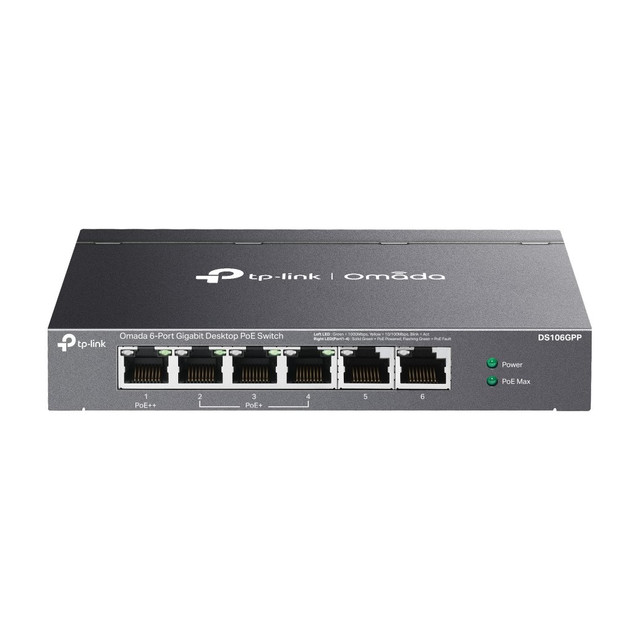

Omada 6-Port Gigabit Unmanaged Desktop PoE Switch, 1 PoE++ and 3 PoE+ Ports, 64 W
TP-Link

Omada 6-Port Gigabit Unmanaged Desktop PoE Switch, 1 PoE++ and 3 PoE+ Ports, 64 W

SKU TPL-DS106GPP Model DS106GPP

  • Six Gigabit ports: one 802.3bt PoE++ port, three PoE+ ports and two data-only
  • Port 1 delivers up to 60 W for a high-draw device, within a 64 W budget
  • Extend mode to 250 m on ports 1-2 and PoE auto recovery on ports 1-4
  • Unmanaged and fanless, plug and play with nothing to configure
New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

Product highlights

  • Ports6 x Gigabit, 4 with PoE
  • PoE64 W, 1 x 802.3bt
  • RangeExtend mode to 250 m
  • Size6.2 x 4.0 x 1.0 in, fanless

The DS106GPP is an unmanaged 6-port Gigabit desktop switch with one 802.3bt PoE++ port and three PoE+ ports, the compact answer when a job has one high-draw device, such as a power-hungry camera or AP, plus a few standard ones. Plug it in and it works.

Built for one big PoE load and a few small ones

Port 1 supports 802.3af/at/bt and delivers up to 60 W, and ports 2 to 4 deliver up to 30 W each, all from a shared 64 W budget. Extend mode on ports 1 and 2 pushes PoE and data out to 250 m at reduced speed, and PoE auto recovery restarts a powered device that stops responding. The case is fanless.

Key features

  • One PoE++ and three PoE+ ports: 802.3bt on port 1, 802.3af/at on ports 2-4
  • 64 W shared budget: port 1 up to 60 W, others up to 30 W each
  • Extend mode to 250 m on ports 1 and 2 for long runs
  • PoE auto recovery: restarts a frozen PoE device on ports 1-4
  • Plug and play: unmanaged and fanless, nothing to configure

System requirements

None. Uses the included 53.5 V DC external power adapter. Powered devices must be 802.3af, 802.3at or, on port 1, 802.3bt compliant.

Specifications

SKUTPL-DS106GPP
BrandTP-Link
Form factor6-port Gigabit unmanaged desktop PoE++ switch
CommunicationEthernet / IP
Power inputExternal adapter, 53.5 V DC / 1.31 A (included)
Power consumption71.46 W max with 64 W of PoE load
ManagementUnmanaged
PoE802.3af PoE
PoE802.3at PoE+
PoE802.3bt PoE++
Port speedGigabit
Ethernet ports6 x 10/100/1000 Mbps RJ45 (port 1 PoE++, ports 2-4 PoE+)
PoE budget64 W total; port 1 up to 60 W, ports 2-4 up to 30 W each
PoE featuresPort 1 802.3af/at/bt, ports 2-4 802.3af/at; extend mode to 250 m on ports 1-2; PoE auto recovery on ports 1-4
Switching capacity12 Gbps
Packet forwarding rate8.928 Mpps
MAC address table4K
Controller managementNot supported. Omada unmanaged switches do not support Omada SDN central management.
Communication notesIGMP snooping, 802.1p/DSCP QoS, 802.3x flow control, auto MDI/MDIX
CoolingFanless
Dimensions6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Operating temp32°F to 104°F (0°C to 40°C)
Operating humidity10 to 90% RH, non-condensing
ComplianceFCC, CE
Package contentsDS106GPP, power adapter, installation guide

Documents and resources

FAQs

Which ports on the DS106GPP have PoE?
Ports 1 to 4. Port 1 is 802.3af/at/bt PoE++ up to 60 W; ports 2 to 4 are 802.3af/at PoE+ up to 30 W. Ports 5 and 6 are data only.
What is the total PoE budget?
64 W shared across ports 1 to 4. Port 1 alone can use up to 60 W, which leaves little for the others.
Can it reach a camera more than 100 m away?
Yes. Extend mode on ports 1 and 2 carries PoE and data up to 250 m, and the port speed drops to 10 Mbps.
Does this switch need to be configured?
No. It is unmanaged and works out of the box. There is no web interface or VLAN support.
Can it join an Omada controller?
No. TP-Link states Omada unmanaged switches do not support Omada SDN central management.
