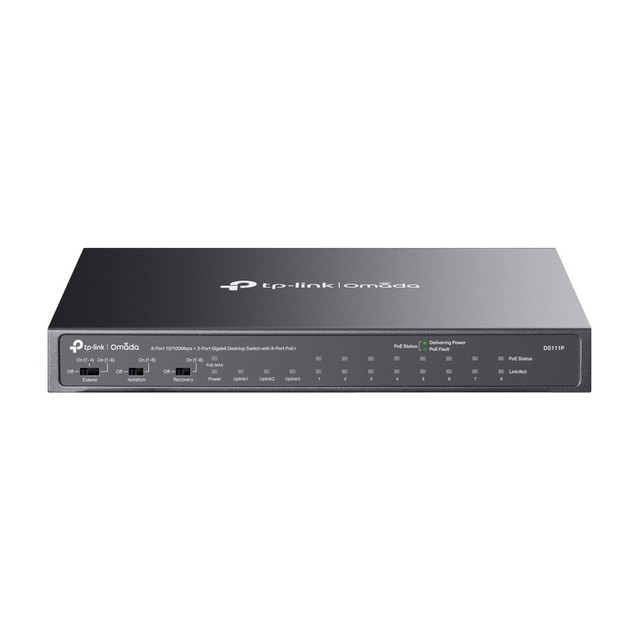

Omada 11-Port Unmanaged Desktop PoE+ Switch, 8 x 10/100 PoE+ Ports and 3 Gigabit Uplinks, 65 W
TP-Link

Omada 11-Port Unmanaged Desktop PoE+ Switch, 8 x 10/100 PoE+ Ports and 3 Gigabit Uplinks, 65 W

SKU TPL-DS111P Model DS111P

  • Eight 10/100 Mbps 802.3af/at PoE+ ports at up to 30 W each from a 65 W budget
  • Two Gigabit RJ45 ports and one Gigabit SFP port for uplinks and Gigabit devices
  • Extend mode to 250 m, isolation mode and PoE auto recovery on ports 1-8
  • Unmanaged and fanless, plug and play with nothing to configure
New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

Product highlights

  • Ports8 x 10/100 PoE+, 3 x Gigabit
  • PoE65 W, 802.3af/at
  • Connectivity2 Gigabit RJ45 + 1 SFP
  • Size8.2 x 4.9 x 1.0 in, fanless

The DS111P is an unmanaged desktop switch with eight 10/100 PoE+ ports and three Gigabit uplink ports, built for camera and phone jobs where devices only need 100 Mbps but the uplink to the NVR or core should be Gigabit. Plug it in and it works.

Built for IP cameras on a Gigabit uplink

Ports 1 to 8 deliver 802.3af/at PoE+ at up to 30 W each from a 65 W shared budget. Two Gigabit RJ45 ports and one Gigabit SFP port handle the uplink or a recorder. Extend mode pushes PoE and data out to 250 m at reduced speed, isolation mode separates clients, and PoE auto recovery restarts a powered device that stops responding. The case is fanless.

Key features

  • 8 PoE+ ports, 65 W total: 802.3af/at at 10/100 Mbps for cameras, APs and phones
  • 3 Gigabit uplink ports: two RJ45 and one SFP
  • Extend mode to 250 m for cameras past the 100 m limit
  • Isolation mode and PoE auto recovery: traffic separation and automatic reboot of frozen devices
  • Plug and play: unmanaged and fanless, nothing to configure

System requirements

None. Uses the included 53.5 V DC external power adapter. Powered devices must be 802.3af or 802.3at compliant.

Specifications

SKUTPL-DS111P
BrandTP-Link
Form factor11-port unmanaged desktop PoE+ switch, 8 x 10/100 PoE+ and 3 Gigabit uplinks
CommunicationEthernet / IP
Power inputExternal adapter, 53.5 V DC / 1.31 A (included)
Power consumption77.32 W max with 65 W of PoE load (110 V)
ManagementUnmanaged
PoE802.3af PoE
PoE802.3at PoE+
Port speedFast Ethernet
Port speedGigabit
Ethernet ports8 x 10/100 Mbps RJ45 PoE+ (ports 1-8), 2 x Gigabit RJ45
SFP slots1 x Gigabit SFP
PoE budget65 W total, up to 30 W per port
PoE featuresExtend mode to 250 m, isolation mode on ports 1-8, PoE auto recovery on ports 1-8
Switching capacity7.6 Gbps
Packet forwarding rate5.6544 Mpps
MAC address table2K
Jumbo frame16 KB
Controller managementNot supported. Omada unmanaged switches do not support Omada SDN central management.
Communication notes802.3x flow control, MAC auto-learning and auto-aging, auto MDI/MDIX
CoolingFanless
SecurityPhysical security lock slot
MountingDesktop
Dimensions8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)
Operating temp32°F to 104°F (0°C to 40°C)
Operating humidity10 to 90% RH, non-condensing
ComplianceFCC, CE, RoHS
Package contentsDS111P, power adapter, installation guide, rubber feet

Documents and resources

FAQs

How many ports on the DS111P have PoE?
Eight. Ports 1 to 8 are 10/100 Mbps 802.3af/at PoE+ up to 30 W each, sharing a 65 W budget. The two Gigabit RJ45 ports and the SFP port are data only.
Are the PoE ports Gigabit?
No. The eight PoE+ ports are 10/100 Mbps. The two RJ45 ports and one SFP port are Gigabit, for uplinks or a recorder.
Can it reach a camera more than 100 m away?
Yes. Extend mode carries PoE and data up to 250 m, and the port speed drops to 10 Mbps.
What does isolation mode do?
It separates client traffic on ports 1-8 for security and performance, set with a one-click toggle.
Does this switch need to be configured?
No. It is unmanaged and works out of the box. There is no web interface or VLAN support.
