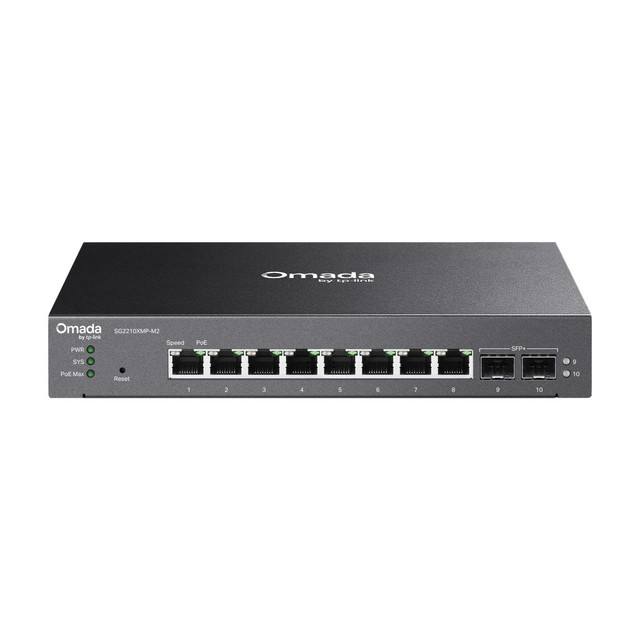

Omada 8-Port 2.5G Smart PoE+ Switch with 2 10GE SFP+ Slots, 160 W, Fanless
SKU TPL-SG2210XMP-M2 Model SG2210XMP-M2
- 8 x 2.5G PoE+ ports sharing a 160 W budget for multi-gig APs and cameras
- Two 10G SFP+ slots for uplinks, with 80 Gbps of switching capacity
- Perpetual PoE and Fast PoE keep devices up through a switch reboot
- Managed in Omada with zero-touch provisioning, or standalone by web UI and CLI
- Fast shipping from four branches
- 30-day returns on unopened products
Product highlights
- Ports8 x 2.5G PoE+, 2 x 10G SFP+
- PoE160 W, 802.3af/at
- MountDesktop or wall
- Size8.9 x 5.2 x 1.4 in
The Omada SG2210XMP-M2 is a Smart switch with eight 2.5G PoE+ ports, two 10G SFP+ slots and a 160 W budget, built for multi-gig access points and cameras that outgrow a Gigabit port. The 10G uplinks keep the aggregate traffic from bottlenecking at the core, and the switch is managed in the same Omada site as the gateway and APs.
Built for multi-gig access points and busy camera runs
Each RJ45 port links at up to 2.5 Gbps and supplies 802.3af/at PoE+, so a multi-gig AP gets its power and its full-speed link over one cable. Perpetual PoE keeps devices powered through a switch reboot and Fast PoE brings them up early on a cold start. 80 Gbps of switching capacity, VLANs, ACLs and static routing cover segmented sites, all in a fanless steel case for desktop or wall mounting.
Key features
- Eight 2.5G PoE+ ports, 160 W total: 802.3af/at for multi-gig APs, cameras and phones
- Two 10G SFP+ slots: for fiber or DAC uplinks to the core
- 80 Gbps switching capacity: so the 10G uplinks are not the bottleneck
- Perpetual and Fast PoE: devices stay powered through a switch reboot and power up early on a cold start
- Fanless steel case: silent in an office, desktop or wall mount
- Omada management: zero-touch provisioning and batch firmware upgrades through the cloud controller
System requirements
Uses the included 53.5V DC external power adapter. Powered devices must be 802.3af or 802.3at compliant. Centralized management needs an Omada Cloud-Based Controller (firmware 5.15.22 or later), Omada hardware controller or Omada Software Controller (5.15.20 or later); zero-touch provisioning needs the cloud controller. Without a controller the switch runs standalone from its own web interface and CLI.
Specifications
| SKU | TPL-SG2210XMP-M2 |
|---|---|
| Brand | TP-Link |
| Form factor | 8-port 2.5G Smart PoE+ switch with 10G SFP+ slots, desktop or wall mount |
| Communication | Ethernet / IP |
| Power input | External adapter, 53.5V DC / 3.37A (included) |
| Power consumption | 195.7 W max at 110V with 160 W of PoE load |
| Management | Smart |
| PoE | 802.3af PoE |
| PoE | 802.3at PoE+ |
| Port speed | 2.5G |
| Port speed | 10G |
| Works with | Omada |
| Ethernet ports | 8 x 2.5G RJ45 PoE+ (10/100/1000/2500 Mbps) |
| SFP slots | 2 x 10G SFP+ |
| PoE budget | 160 W total |
| PoE features | Perpetual PoE, Fast PoE |
| Switching capacity | 80 Gbps |
| Packet forwarding rate | 59.52 Mpps |
| MAC address table | 16K |
| Jumbo frame | 9 KB |
| VLANs | 4K 802.1Q VLAN groups, MAC, protocol and voice VLAN, GVRP |
| L2+ features | 32 IPv4/IPv6 static routes, DHCP server and relay, link aggregation with LACP, STP/RSTP/MSTP, loopback detection |
| Security | 802.1X, RADIUS AAA, ACLs, DHCP snooping, ARP inspection, port security, storm control |
| Controller management | Omada Cloud-Based (v5.15.22+), hardware or Software Controller (v5.15.20+); Omada app |
| Communication notes | Web GUI, CLI through Telnet, SNMP v1/v2c/v3, RMON, LLDP/LLDP-MED, IGMP snooping, IPv6 |
| Cooling | Fanless |
| Mounting | Desktop or wall mount |
| Dimensions | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) |
| Operating temp | 23°F to 104°F (-5°C to 40°C) |
| Operating humidity | 10 to 90% RH, non-condensing |
| Compliance | FCC, CE |
| Package contents | SG2210XMP-M2, power adapter, power cord, rubber feet, quick installation guide |
