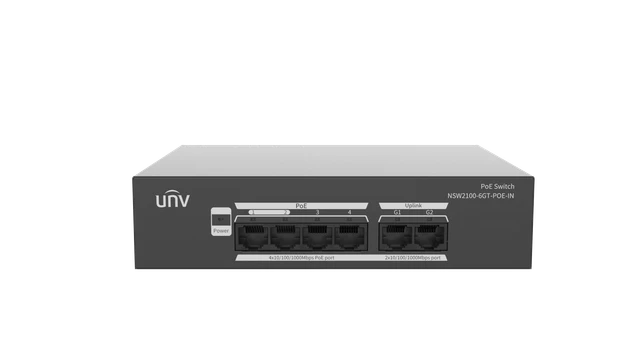

6-Port Gigabit Cloud Managed PoE Switch
SKU UNV-NSW2100-6GT-POE-IN
- Fast shipping from four branches
- 30-day returns on unopened products
The NSW2100-6GT-PoE-IN is a 6-port gigabit PoE switch with four 802.3af/at PoE ports and two gigabit RJ45 uplinks. Total PoE budget is 65W, with up to 30W available per port. Fanless design in an all-metal enclosure - no moving parts, no noise, no maintenance.
Supports 250-meter extended PoE transmission in extend mode (10Mbps), VLAN isolation, loop detection, and port priority for managed power distribution. Manageable via web interface or cloud app. Not NDAA-compliant.
- 65W total PoE budget across 4 gigabit ports (30W max per port, IEEE 802.3af/at)
- 2 gigabit RJ45 uplink ports for backbone connectivity
- 250m extended PoE reach in extend mode for long cable runs
- Fanless, all-metal chassis - installs in closets and ceiling spaces without ventilation concerns
- VLAN isolation, loop detection, and port mirroring for basic L2 network management
- Cloud or web-based management with real-time device monitoring
Specifications
| SKU | UNV-NSW2100-6GT-POE-IN |
|---|---|
| Brand | Uniview |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Power Source | AC 100-240V, 50/60Hz |
| Max PoE Power | 65W total; 30W per port |
| PoE Ports | 4x 10/100/1000Mbps RJ45 |
| Uplink Ports | 2x 10/100/1000Mbps RJ45 |
| Switching Capacity | 12Gbps |
| Forwarding Performance | 8.92Mpps |
| MAC Address Table | 2K |
| Network Standards | IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af, 802.3at |
| Certifications | CE, FCC, RoHS; NOT NDAA-compliant |
| VLAN Support | Up to 6 VLANs, IDs 1-4094 |
| Link Aggregation | 2 groups (up to 4 ports) |
| Loop Detection | Yes |
| Port Mirroring | N:1 |
| Extended PoE Range | 250m (10Mbps in extend mode) |
| Cooling | Fanless (passive) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Dimensions | 6.7 x 5.2 x 1.6 in (169 x 132 x 40mm) |
| Weight | 1.43 lbs (0.65kg) |
| Max Power Consumption | 70W |
