FX-64 Intelligent Fire Alarm Panel, 64-Point Loop, 2 NACs, Red Surface Mount
Kidde Commercial

FX-64 Intelligent Fire Alarm Panel, 64-Point Loop, 2 NACs, Red Surface Mount

SKU KD-FX-64R

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

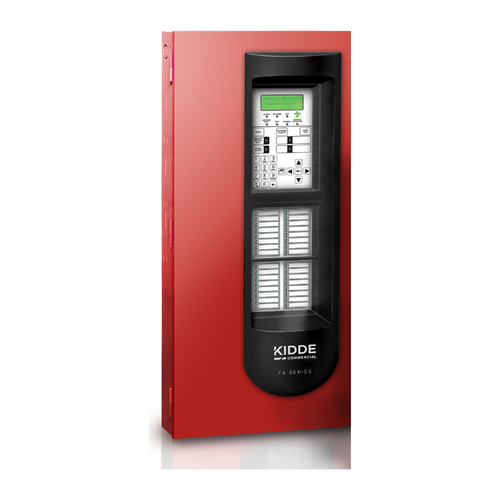

The FX-64R is a one-loop intelligent fire alarm control panel supporting up to 64 device addresses in any combination of detectors and modules. It brings addressable detection to small buildings that would otherwise be stuck on a conventional panel, in a red surface-mount enclosure.

Built for the commercial fire installer

Rotary addressing is the practical advantage here. Devices are addressed with familiar rotary switches rather than a programmer, and the panel maps them automatically, so commissioning does not depend on one technician who knows the software. The loop wires Class A or Class B in Styles 4, 6, or 7, and supports up to 63 T-taps, which means each device can sit on its own branch rather than forcing a daisy chain through awkward ceiling spaces.

Two Class B notification appliance circuits come standard at 3.75 A total, with Class A available through a module. For retrofits where existing conventional devices need to stay in service, the RZI16-2RS module adds 16 conventional circuits and two more NACs to the same panel.

Key features

  • 64 intelligent device addresses on one Class A or Class B loop, any mix of detectors and modules
  • Rotary addressing with automatic device mapping: no programmer required to address a device
  • Up to 63 T-taps: every device can be on its own branch
  • Two Class B NACs at 3.75 A total, 2.5 A max per circuit, Class A optional via module
  • Two 500 mA auxiliary power outputs at 24 VDC
  • Up to 8 remote annunciator drops over RS-485 at up to 4,000 ft
  • Conventional retrofit path: RZI16-2RS adds 16 conventional circuits and two NACs
  • Optional Ethernet (SA-ETH) for central monitoring, programming and diagnostics

System requirements

Requires 120 VAC 60 Hz at 1.3 A max. Two 10 Ah batteries fit inside the FX-64 cabinet; larger batteries need an external Kidde battery cabinet. The dialer is ordered separately, and the SA-DACT2 mounts in the panel for central station reporting over one or two loop-start lines. Order the SA-TRIM1 for a flush-mount installation. See compatibility list 3102355-EN for supported devices.

Specifications

SKUKD-FX-64R
BrandKidde Commercial
Form factorRed surface mount enclosure, intelligent fire alarm control panel
Device loops1 loop, Class A or Class B (Styles 4, 6, 7), up to 64 device addresses
Maximum T-taps63
Notification appliance circuits2 Class B (Style Y), Class A (Style Z) optional via module
NAC power3.75 A FWR total at 120/230 VAC 60 Hz; 2.5 A FWR max per circuit
Power input120 VAC, 60 Hz, 1.3 A max
Panel currentStandby 155 mA, alarm 204 mA
Input zones16 max
Remote annunciator8 drops max, RS-485 Class B (Class A optional), 4,000 ft data line
Auxiliary powerAux 1: 500 mA 24 VDC; Aux 2: 500 mA 24 VDC
Loop circuit limitsMax loop resistance 66 ohm, max capacitance 0.5 uF, 64 isolators per loop
Battery capacityUp to two 10 Ah batteries in cabinet; external cabinet for larger
Operating voltage24 VDC panel
Ground fault impedance0 to 5 kohm
Alarm contactForm C normally open, 24 VDC @ 1 A resistive
Trouble contactForm C, 24 VDC @ 1 A resistive
Supervisory contactForm A normally open, 24 VDC @ 1 A resistive
Terminal wire gauge12 to 18 AWG (0.75 to 2.5 sq mm)
Battery typeSealed lead acid, 24 VDC
Battery charging current2.47 A max, 26 Ah capacity
Standby operation24 hour or 60 hour
Operating temp32 to 120 F (0 to 49 C)
Operating humidity0 to 93% non-condensing

Documents and resources

FAQs

How many devices can the FX-64R support?
Up to 64 device addresses on a single loop, in any combination of detectors and modules. Each device can be on its own T-tap branch, up to 63 T-taps.
Do I need a programmer to address devices?
No. Devices are addressed with rotary switches on the device itself, and the panel maps them automatically. That keeps commissioning independent of specialist software knowledge.
Can I keep existing conventional devices on a retrofit?
Yes. The RZI16-2RS module adds up to 16 conventional device circuits and two additional notification appliance circuits to the panel, so intelligent and conventional devices run side by side.
Is a dialer included?
No. The dialer is ordered separately. The SA-DACT2 mounts inside the panel and reports over one or two loop-start phone lines using Contact ID.
What batteries fit inside the cabinet?
Two 10 amp-hour sealed lead acid batteries fit inside the FX-64 cabinet. If the standby calculation needs more, use an external Kidde battery cabinet.
Can the panel be flush mounted?
Yes. Order the SA-TRIM1 flush mount trim, in black, separately.
