Kidde | Genesis LED EGCS Ceiling Speaker-Strobe, High Candela 135/185 cd, White, ALERT Marking, 520Hz Capable | EGCSVHWA

You save

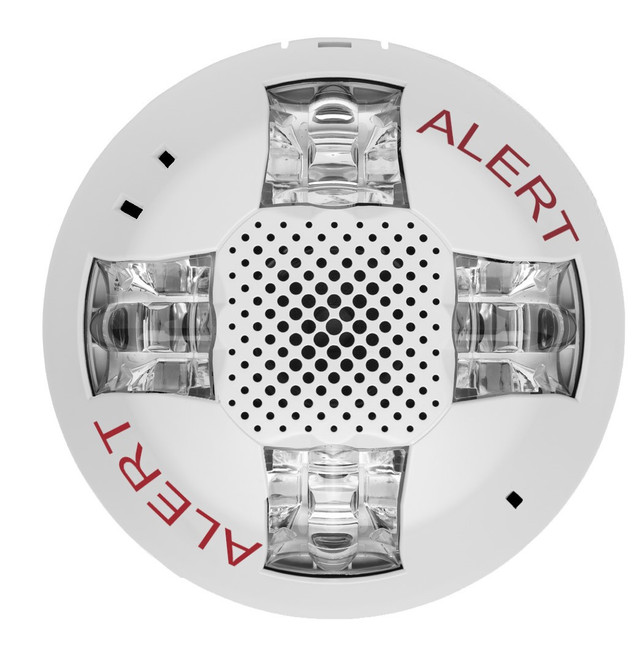

Kidde | Genesis LED EGCS Ceiling Speaker-Strobe, High Candela 135/185 cd, White, ALERT Marking, 520Hz Capable | EGCSVHWA

No reviews yet Write a Review

SKU:: KD-EGCSVHWA

Description
Specifications
FAQs
Documents

The Kidde EGCSVHWA is a Genesis LED EGCS Series ceiling-mount speaker-strobe that combines high-candela visual notification (135/185 cd field-selectable) with a high-fidelity speaker on a single NAC circuit connection. White housing with ALERT marking makes it the right fit for mass notification and general alarm applications in commercial spaces where ceiling-mount coverage is required.

Built for the commercial fire installer

The Genesis LED EGCS platform mounts to standard 2-gang or 4-inch square electrical boxes (minimum 1-1/2" deep), keeping the install on common hardware. Field-selectable candela (135 or 185 cd), speaker wattage (1/4W to 2W), and voltage (25VRMS or 70VRMS) let you configure at the device instead of ordering separate SKUs. The included room side wiring plate (GRSW) allows field wiring from the front of the device after the backplate is mounted.

Key features

High-candela LED strobe (135/185 cd): field-selectable output covers large open spaces and high-ceiling applications per NFPA 72
520Hz low frequency capable: meets sleeping area notification requirements when paired with approved audio source hardware
Field-selectable speaker wattage: 1/4W, 1/2W, 1W, or 2W taps with 25VRMS or 70VRMS operation
STI rating of .81: exceeds IEC 60849 intelligibility requirements for voice evacuation
Genesis LED platform: backward-compatible with existing Genesis circuits and installations, LED strobes draw consistent current across all candela settings
UL listed, FM Approved: listed to UL 1480 (speakers) and UL 1971 (strobes) for commercial fire alarm applications

System requirements

Connects to any Kidde-compatible NAC circuit, including CC Series Signal Modules, Booster and Auxiliary Power Supplies, and Intelligent or Conventional Fire Alarm Control Panels. Strobe synchronization is automatic when connected to a compatible Kidde sync source. Audio source (tone or voice) is supplied by the panel or audio controller driving the 25V/70V speaker circuit.

Brand:

Kidde Commercial

Form factor:

Ceiling mount speaker-strobe, Genesis LED EGCS Series

Strobe candela output:

135/185 cd, field-selectable

Strobe operating voltage:

16-33 VDC, 16-33 VFWR

Strobe flash rate:

1 fps, synchronized

Speaker operating voltage:

25VRMS or 70VRMS, field-selectable

Speaker wattage taps:

1/4W, 1/2W, 1W, 2W, field-selectable

Speaker frequency response:

400 Hz - 4,000 Hz

Speech Transmission Index:

.81 (STI)

Sound output:

Up to 87 dB (reverberant, UL 1480, at 2W)

Low frequency:

520Hz capable

Wire size:

12-18 AWG

Mounting:

Standard 2-gang or 4" square electrical box, min 1-1/2" deep

Dimensions:

6.8" diameter x 1.82" deep (17.27 x 4.62 cm)

Housing color:

White (RAL 9002)

Marking:

ALERT

Operating temperature:

32°F to 122°F (0°C to 50°C)

Operating humidity:

0-93% noncondensing

Room side wiring plate:

Included (GRSW)

Compliance:

UL (S218, S5389), FCC, FM Approved

What candela settings does the EGCSVHWA have?

135 cd and 185 cd, field-selectable via DIP switch. This is the high-candela variant of the Genesis LED EGCS ceiling speaker-strobe line, designed for large open spaces and high-ceiling applications.

Can Genesis LED EGCS devices share a circuit with legacy Xenon Genesis devices?

Yes. Genesis LED devices are backward-compatible with existing Genesis circuits and sync sources. LED and Xenon devices can operate on the same NAC circuit without modifications.

Does this speaker support 520Hz low frequency tones?

Yes. The EGCS platform is 520Hz capable for sleeping area notification per NFPA 72, when paired with an approved audio source providing the factory-supplied 520Hz tone.

What electrical boxes does this mount to?

Standard 2-gang or 4-inch square electrical boxes with a minimum depth of 1-1/2". No special mounting hardware required.

What synchronization sources are compatible?

Kidde CC Series Signal Modules, Booster and Auxiliary Power Supplies, and Intelligent and Conventional Fire Alarm Control Panels. Synchronization is automatic when connected to a compatible source.

Is the room side wiring plate included?

Yes. The GRSW room side wiring plate ships with the device and allows front-of-device wiring access after the backplate is mounted.
