Genesis LED EGCS Series Ceiling Mount Speaker-Strobe, 15/30/75/115 cd Selectable, Red, FIRE Marking
Kidde Commercial

Genesis LED EGCS Series Ceiling Mount Speaker-Strobe, 15/30/75/115 cd Selectable, Red, FIRE Marking

SKU KD-EGCSVRF

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

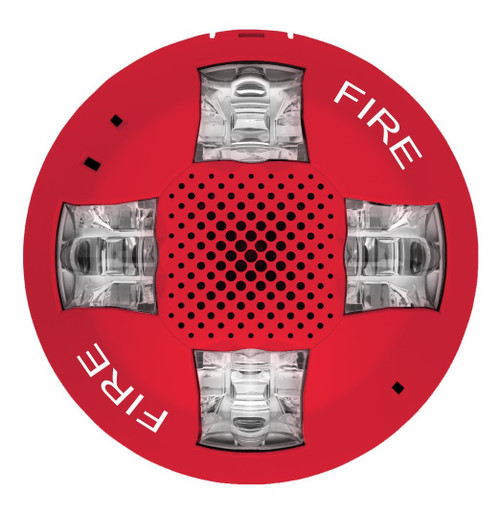

The Kidde Genesis LED EGCSVRF is a ceiling-mount speaker-strobe that combines audible and visual notification in a single low-profile device. Field-selectable candela (15, 30, 75, or 115 cd) and dual-voltage speaker taps (25V or 70V) let you configure it to the job without swapping hardware - one SKU covers a range of commercial applications from corridors to open floor plans.

Built for the commercial fire installer

The EGCS Series mounts to standard 2-gang or 4-inch square electrical boxes with no special hardware. The included room-side wiring plate (GRSW) lets you terminate wiring from the finished side of the ceiling - no attic access required for trim-out. High-efficiency LED strobes draw less current than incandescent equivalents, supporting more devices per NAC circuit. UL 1638, UL 1480, ULC-S541, and ULC-S526 listed. ADA and NFPA 72 compliant.

Key features

  • Field-selectable candela: 15, 30, 75, or 115 cd - set on site, no replacement parts needed
  • Dual-voltage speaker: selectable 25VRMS or 70VRMS taps for flexible system design
  • Room-side wiring plate included: terminate from the finished side, no attic re-entry
  • Low current draw: high-efficiency LED technology supports more devices per NAC circuit
  • Synchronizable: works with Kidde CC Series Signal Modules, Booster and Auxiliary Power Supplies, and Intelligent and Conventional fire alarm control panels
  • Universal mounting: fits 2-gang and 4-inch square electrical boxes (min 1-1/2 in. deep)

System compatibility

Synchronizes with Kidde CC Series Signal Modules and works with both Kidde Intelligent and Conventional fire alarm control panels. Wire runs accept 12 to 18 AWG conductors. Maximum synchronization loop resistance: 20 between any two devices.

Specifications

SKUKD-EGCSVRF
BrandKidde Commercial
Form factorCeiling-mount speaker-strobe
Strobe operating voltage16-33 VDC or 16-33 VFWR
Speaker voltage25VRMS or 70VRMS (field-selectable)
Light output15, 30, 75, or 115 cd (field-selectable)
Speaker frequency response400 Hz - 4,000 Hz
Sound output84+ dBA at 10 ft (UL rated)
Strobe flash rate1 fps (approx.)
Wire size12-18 AWG (0.75-2.50 mm²)
Synchronization20 Ω max between any two devices
Mounting2-gang or 4-inch square electrical box (min 1-1/2 in. deep)
Dimensions6.8 x 1.82 in. (Ø x D)
Operating temp32 to 122°F (0 to 50°C)
Operating humidity0 to 93% noncondensing
Storage temp-40 to 158°F (-40 to 70°C)
ColorRed (RAL 3013)
Housing markingFIRE
ComplianceUL 1638, UL 1480, ULC-S541, ULC-S526, ADA, NFPA 72
Included accessoriesGRSW room-side wiring plate

Documents and resources

FAQs

What candela settings are available on the EGCSVRF?
Four field-selectable settings: 15, 30, 75, and 115 cd. Selection is made on the device with no replacement parts or special tools required.
What electrical boxes does this mount to?
Standard 2-gang or 4-inch square electrical boxes with a minimum depth of 1-1/2 in. (3.81 cm). Recommended mounting height is 81 inches AFF per NFPA 72.
Is the room-side wiring plate included?
Yes. The GRSW room-side wiring plate ships with every EGCSVRF. It allows wiring termination from the finished side of the ceiling without attic access.
Can this synchronize with other notification devices?
Yes. Synchronizes via Kidde CC Series Signal Modules and Booster/Auxiliary Power Supplies. Works with Intelligent and Conventional Kidde panels. Max loop resistance: 20 Ω.
What voltage does the speaker require?
The speaker accepts 25VRMS or 70VRMS, field-selectable. This flexibility accommodates different fire alarm system architectures without needing separate SKUs.
Is this device UL listed?
Yes. UL 1638 (visual signaling), UL 1480 (speakers), ULC-S541, and ULC-S526 listed. ADA compliant and meets NFPA 72 requirements.
