  • Kidde | Genesis LED EGC Series Ceiling Mount Strobe, 135/185 cd High Candela, Red, No Marking | EGCVHRN

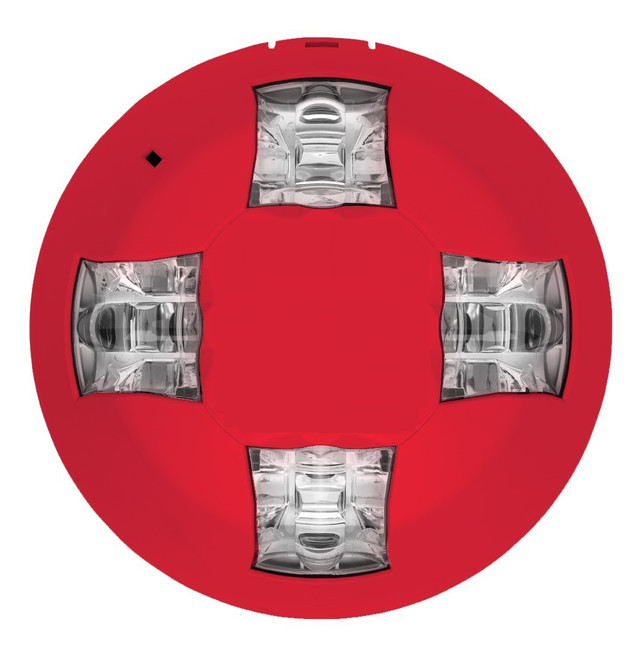

Genesis LED EGC Series Ceiling Mount Strobe, 135/185 cd High Candela, Red, No Marking
Kidde Commercial

Genesis LED EGC Series Ceiling Mount Strobe, 135/185 cd High Candela, Red, No Marking

SKU KD-EGCVHRN

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde Genesis LED EGC Series ceiling mount strobe delivers high-candela visual notification for large open commercial spaces where standard-output devices fall short. Field-selectable 135 or 185 cd output covers the room without stacking multiple devices, cutting install time and material cost on warehouses, atriums, and open-plan offices.

Built for the commercial fire alarm installer

Mounts directly to a standard 4-inch square electrical box with the included room-side wiring plate. Wire connections happen from the room side, not behind the device. Compatible with 16-33V DC regulated or 16-33V FWR unregulated NAC circuits. UL 1971 and ULC-S526 listed. SmartSync technology enables temporal code 3 signaling from a steady NAC output, reducing panel and wiring requirements on retrofit jobs.

Key features

  • Field-selectable 135/185 cd output covers large open spaces without stacking standard-candela devices
  • Room-side wiring plate included - make connections from the room side, not behind the box
  • SmartSync compatible for temporal code 3 pattern from a steady NAC circuit
  • Genesis LED technology for lower current draw and longer service life than incandescent strobes
  • Anti-feedback technology prevents nuisance coupling on shared NAC circuits
  • Standard 4" square box mounting - no proprietary backboxes or adapters

System requirements

Requires a fire alarm control panel (FACP) with a regulated 16-33V DC or unregulated 16-33V FWR NAC circuit. Wire with 12-18 AWG. Indoor use only.

Specifications

SKUKD-EGCVHRN
BrandKidde Commercial
Form factorCeiling mount strobe, round housing
Light outputField-selectable 135 or 185 cd
Housing colorRed
Lens markingNone
Operating voltage16-33V DC regulated or 16-33V FWR unregulated
Wire gauge12-18 AWG
Operating temp32°F to 120°F (0°C to 49°C)
Operating humidity10-93% non-condensing
MountingStandard 4" square electrical box
SignalingSmartSync compatible, temporal code 3
EnvironmentIndoor use only
ListingsUL 1971, UL 464, ULC-S526, ULC-S525

Documents and resources

FAQs

Does this strobe work with my existing FACP?
Yes. The Genesis LED EGC ceiling strobe operates on any FACP with a regulated 16-33V DC or unregulated 16-33V FWR NAC circuit. SmartSync technology also allows temporal code 3 signaling from a steady NAC output.
What candela settings are available on this model?
This is the high-candela variant with two field-selectable settings: 135 cd and 185 cd. For lower output requirements (15/30/75/115 cd), see the standard EGC ceiling strobe models.
Can I install this outdoors?
No. The Genesis LED EGC ceiling strobe is rated for indoor use only, with an operating temperature range of 32°F to 120°F and humidity tolerance of 10-93% non-condensing.
What electrical box does this mount to?
Standard 4-inch square electrical box. The included room-side wiring plate allows all wire connections from the room side.
Does this model have FIRE marking on the lens?
No. The EGCVHRN is the no-marking variant. If your AHJ requires FIRE marking, order the EGCVHR model instead.
