Genesis LED EG1 Series Compact Wall-Mount Fire Strobe, Selectable 15/30/75 cd, NAC-Powered, UL 1971 (Red, FIRE Marking)
Kidde Commercial

Genesis LED EG1 Series Compact Wall-Mount Fire Strobe, Selectable 15/30/75 cd, NAC-Powered, UL 1971 (Red, FIRE Marking)

SKU KD-EG1VRF

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

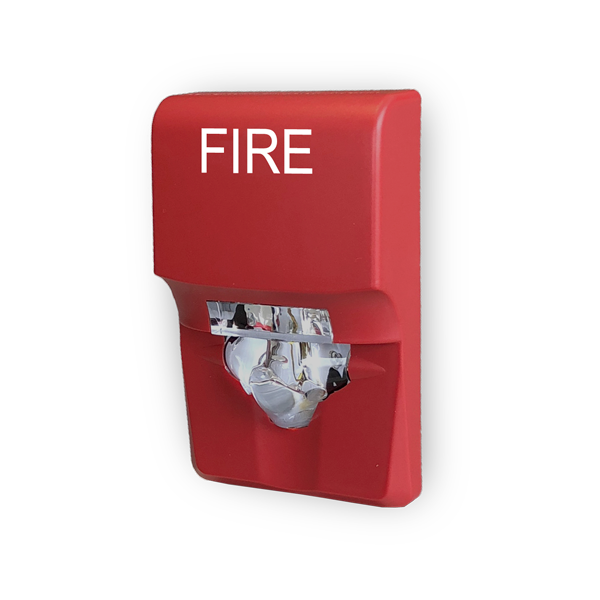

The strong EG1VRF is a compact, wall-mounted LED strobe built for commercial fire alarm systems where audible signaling is not required. With strong field-selectable 15, 30, or 75 candela output , one SKU covers multiple spacing and code requirements - fewer part numbers on the truck, fewer callbacks over mis-specified devices.

Built for the commercial installer

Part of the Genesis LED EG1 Series, the EG1VRF runs on standard NAC circuits (16-33 VDC or VFWR) and draws just 24 mA at any candela setting. That low current keeps power budgets tight and allows more devices per NAC loop before hitting supply limits. UL 1971, UL 1638, UL 464, and CSFM listed. FCC compliant. Red housing with FIRE marking for code-compliant visual-only notification in ADA applications, quiet zones, and areas already served by audible devices.

Key features

  • Selectable 15/30/75 cd output: one SKU covers multiple spacing requirements per NFPA 72
  • Low current draw (24 mA DC at all settings): maximizes device count per NAC circuit
  • Universal mounting plate: fits 1-gang, 2-gang, 4" octagon, and 4" square electrical boxes
  • Snap-in polarized connector: speeds field wiring and prevents reversed polarity
  • Synchronizable: works with Kidde CC Series signal modules and both Intelligent and Conventional control panels
  • LED technology: longer service life and lower current draw than legacy Xenon strobes

System compatibility

Synchronizes with Kidde CC Series Signal Modules, Booster Power Supplies, Auxiliary Power Supplies, and both Intelligent and Conventional Control Panels. Maximum 20 loop resistance between any two synchronized devices. Accepts 12-18 AWG field wiring.

Specifications

SKUKD-EG1VRF
BrandKidde Commercial
Weight.13 lbs
Length2.2 in
Width5 in
Height3.4 in
AgenciesULC, CC, CSFM, UL, cUL
Form factorCompact wall-mount LED strobe
Power inputNAC circuit, 16-33 VDC or 16-33 VFWR
Strobe outputSelectable 15, 30, or 75 cd
Flash rate1 fps
Current draw (DC)24 mA at 15/30/75 cd (24 VDC)
Current draw (FWR)32 mA at 15/30/75 cd (24 VFWR)
Wire size12-18 AWG
ConnectorsSnap-in polarized
Mounting1-gang, 2-gang, 4" octagon, 4" square boxes; universal mounting plate
Dimensions3 x 4-5/8 x 1-1/8 in. (7.62 x 11.75 x 2.86 cm)
Operating temp32°F to 122°F (0°C to 50°C)
Operating humidity0-93% noncondensing
Synchronization20Ω max loop resistance between any two devices
Sync sourcesKidde CC Series Signal Modules, Booster Power Supplies, Auxiliary Power Supplies, Intelligent and Conventional Control Panels
Housing colorRed
Lens markingFIRE
ComplianceUL 1971, UL 1638, UL 464, CSFM, FCC, ICC

Documents and resources

FAQs

What candela settings are available on the EG1VRF?
The EG1VRF offers field-selectable 15, 30, or 75 candela output. Selection is made at install time - no need to stock multiple SKUs for different spacing requirements.
What electrical boxes does the EG1VRF mount to?
Fits standard 1-gang, 2-gang, 4-inch octagon, and 4-inch square electrical boxes using the included universal mounting plate. No special backbox or adapter required.
Does the EG1VRF require a separate sync module?
Depends on the panel. Synchronizes with Kidde CC Series Signal Modules, Booster Power Supplies, Auxiliary Power Supplies, and Intelligent/Conventional Control Panels. Max 20Ω loop resistance between devices.
What is the current draw of the EG1VRF?
24 mA DC or 32 mA FWR at any candela setting (measured at 24V). The low, flat draw across all settings simplifies NAC power budgeting.
Is the EG1VRF compatible with conventional fire alarm panels?
Yes. Operates on standard NAC circuits (16-33 VDC or 16-33 VFWR) and is compatible with both Kidde Intelligent and Conventional Control Panels.
What wire size does the EG1VRF accept?
12-18 AWG. Uses a snap-in polarized connector for fast, reliable field wiring.
