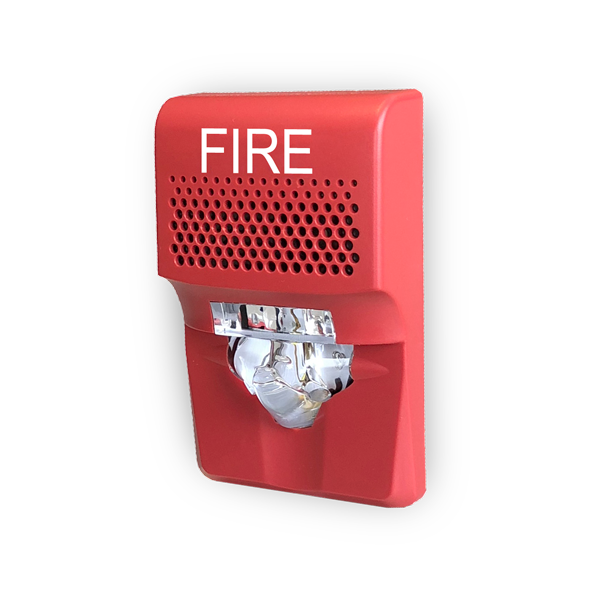

Genesis LED EG1 Series Compact Wall-Mount Horn/Strobe, Selectable 15/30/75 cd, Red, "FIRE" Marking
Kidde Commercial

Genesis LED EG1 Series Compact Wall-Mount Horn/Strobe, Selectable 15/30/75 cd, Red, "FIRE" Marking

SKU KD-EG1AVRF

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The EG1AVRF is a compact wall-mount horn/strobe from Kidde's Genesis LED EG1 Series, built for commercial fire alarm notification. Field-selectable 15, 30, or 75 candela output covers a range of spacing requirements with a single SKU, and a high/low dB horn toggle with constant or T3 temporal patterns handles both alert modes without swapping devices.

Built for the commercial installer

LED technology keeps current draw low (as little as 35 mA at 75 cd on DC), which means fewer power supplies and simpler NAC circuit math on large jobs. The device mounts to standard 1-gang, 2-gang, 4-inch octagon, or 4-inch square boxes with no special hardware. Listed to UL 1971, UL 1638, and UL 464, and ADA compliant for strobe output. Synchronization works across Kidde CC Series signal modules, booster/auxiliary power supplies, and both Intelligent and Conventional control panels.

Key features

  • Field-selectable 15/30/75 cd strobe: one SKU covers multiple spacing tables, reducing inventory and change-order headaches
  • High/low dB horn with constant or T3 temporal patterns: 80-85 dBA reverberant (UL 464), configurable on-site
  • Low current draw: LED technology pulls as little as 35 mA (VDC) at full 75 cd output, stretching NAC circuit capacity
  • Standard box compatibility: mounts to 1-gang, 2-gang, 4-inch octagon, or 4-inch square electrical boxes
  • Broad panel compatibility: synchronizes with Kidde Intelligent and Conventional control panels and CC Series signal modules
  • UL listed and ADA compliant: UL 1971, UL 1638, UL 464, FCC, ICC, CSFM

System requirements

Operates on 16-33 VDC or 16-33 VFWR from a compatible Kidde fire alarm control panel or NAC power supply. Synchronization requires 20 ohms or less between any two devices on the circuit. Wire with 12-18 AWG conductors. Optional trim rings (EG1TR red, EG1TW white) available for finished installations.

Specifications

SKUKD-EG1AVRF
BrandKidde Commercial
Weight.45 lbs
Length5 in
Width2.2 in
Height3.4 in
AgenciesULC, CC, CSFM, UL, cUL
Form factorCompact wall-mount horn/strobe, red housing, "FIRE" marking
Light outputField-selectable 15, 30, or 75 candela
Sound outputHigh: 85 dBA reverberant (UL 464), 92 dBA anechoic (ULC S525); Low: 80 dBA reverberant, 86 dBA anechoic
Horn signal patternConstant or T3 temporal, field-selectable
Strobe flash rate1 flash per second (approx.)
Power input16-33 VDC or 16-33 VFWR
Current draw (VDC)35 mA (low dB, 75 cd) to 45 mA (high dB, 75 cd)
Current draw (VFWR)43 mA (low dB, 75 cd) to 55 mA (high dB, 75 cd)
Wire size12-18 AWG (0.75-2.50 mm²)
Synchronization20 ohms max between any two devices; syncs with Kidde CC Series signal modules, booster/auxiliary power supplies, Intelligent and Conventional panels
Compatible electrical boxes1-gang, 2-gang, 4-inch octagon, 4-inch square
Trim ringsEG1TR (red), EG1TW (white) - sold separately
Operating temp32°F to 122°F (0°C to 50°C)
Operating humidity0-93% noncondensing
Dimensions3 × 4-5/8 × 1-1/8 in. (7.62 × 11.75 × 2.86 cm)
ComplianceUL 1971, UL 1638, UL 464, FCC, ICC, CSFM, ADA compliant

Documents and resources

FAQs

Does this work with both Intelligent and Conventional fire alarm panels?
Yes. The EG1AVRF synchronizes with Kidde Intelligent control panels, Conventional control panels, CC Series signal modules, and booster/auxiliary power supplies. No protocol-specific variant needed.
What electrical boxes does the EG1AVRF fit?
Standard 1-gang, 2-gang, 4-inch octagon, and 4-inch square boxes. No proprietary mounting plate or adapter required.
How do I change the candela output in the field?
Candela is field-selectable between 15, 30, and 75 cd using a selector on the device. No tools beyond what you need for mounting. One SKU covers multiple spacing table requirements.
What is the current draw at maximum output?
At 75 cd with high dB horn: 45 mA on VDC, 55 mA on VFWR. At 75 cd with low dB horn: 35 mA on VDC, 43 mA on VFWR. LED technology keeps draw well below older incandescent equivalents, stretching NAC circuit capacity.
Is this device ADA compliant?
Yes. The strobe output meets ADA requirements for visual notification. Listed to UL 1971 (visual signaling), UL 1638 (visual signaling for private mode), and UL 464 (audible signaling).
Can I synchronize multiple EG1 devices on the same circuit?
Yes. Synchronization requires 20 ohms or less of wiring resistance between any two devices on the NAC circuit. The EG1 Series syncs with all Kidde CC Series signal modules and compatible control panels.
