Analog Addressable Class A Single Input Module for FX Series Fire Alarm Panels
Kidde Commercial

Analog Addressable Class A Single Input Module for FX Series Fire Alarm Panels

SKU KD-FX-IDC1A

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

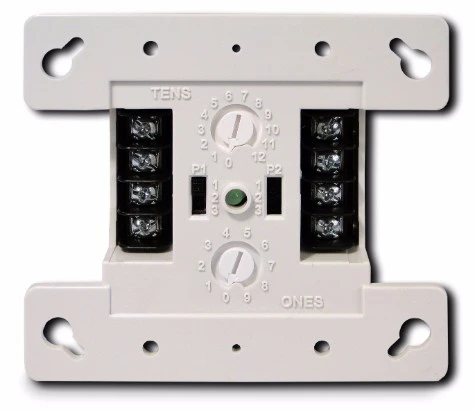

The FX-IDC1A connects a single dry-contact initiating device circuit to Kidde FX Series fire alarm panels over a Class A (Style D) SLC loop. Rotary-addressed with two thumbwheel switches, it programs on-site without a laptop and drops into a standard 4-inch square box.

Built for the fire alarm installer

This module monitors one normally open alarm, supervisory, or monitor-type IDC and reports status back to the panel over the SLC. A slide switch presets alarm or supervisory operation at the device, with additional device types configurable through front-panel programming or the Kidde configuration utility. UL 864 and ULC-S527 listed. Compatible with Kidde FX-64 and FX-1000 series fire alarm control panels.

Key benefits

  • Class A (Style D) survivability: maintains circuit integrity even with a single open or ground fault on the SLC
  • Rotary address switches: set the device address on-site without a programming tool - supports 01-64 on FX-64 panels and 01-127 on FX-1000 panels
  • Standard box mounting: fits North American 4" square boxes (1-1/2" or 2-1/2" deep) and 2-gang boxes
  • Low SLC current draw: 400 A standby, 500 A activated - minimal impact on loop loading calculations
  • Field-selectable operation: slide switch toggles between alarm and supervisory without panel reprogramming

System requirements

Connects to the SLC loop of a Kidde FX-64 or FX-1000 series fire alarm control panel. Wire per NFPA 72 and CAN/ULC-S524 using 12-18 AWG conductors (16 or 18 AWG preferred). Does not support conventional smoke detectors on the IDC - use dry-contact initiating devices only.

Specifications

SKUKD-FX-IDC1A
BrandKidde Commercial
Form factorSingle input module, mounts in standard 4" square electrical box
CommunicationAnalog addressable SLC, Class A (Style D)
Power inputSLC loop powered (max 20V peak-to-peak)
Current draw400 μA standby / 500 μA activated
Address range01-64 (FX-64 panels) / 01-127 (FX-1000 panels)
IDC max circuit resistance50Ω (25Ω per wire)
IDC max circuit capacitance0.1 μF
Ground fault impedance10 kΩ
Wire size12, 14, 16, or 18 AWG (16 and 18 preferred)
Compatible electrical boxes4" square x 2-1/2" deep, 2-gang; Standard 4" square x 1-1/2" deep
Operating temp32 to 120°F (0 to 49°C)
Operating humidity0 to 93% RH, noncondensing at 90°F (32°C)
Storage temp-4 to 140°F (-20 to 60°C)
ComplianceUL 864, ULC-S527, NFPA 72, CAN/ULC-S524
CompatibilityKidde FX-64 and FX-1000 series fire alarm control panels
Ship weight0.50 lbs (0.23 kg)

Documents and resources

FAQs

Does the FX-IDC1A support conventional smoke detectors?
No. This module monitors dry-contact initiating devices only (normally open alarm, supervisory, or monitor-type circuits). Conventional two-wire or four-wire smoke detectors require a different module.
What Kidde panels is this compatible with?
The FX-IDC1A works with Kidde FX-64 and FX-1000 series fire alarm control panels. Verify your panel firmware is current for full compatibility.
How do I set the device address?
Two rotary thumbwheel switches on the module set the TENS and ONES digits. No laptop or programming tool required. Supported range is 01-64 on FX-64 panels and 01-127 on FX-1000 panels.
What electrical box does it mount in?
Fits a standard North American 4" square box (1-1/2" or 2-1/2" deep) or a 2-gang box. No special mounting hardware required.
What is the difference between alarm and supervisory mode?
A slide switch on the module presets the IDC for alarm or supervisory reporting to the panel. Additional device types (monitor, etc.) can be configured through the panel's front-panel programming or Kidde configuration utility.
