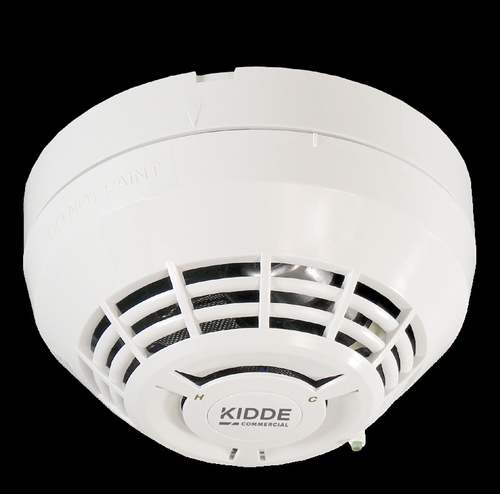

Kidde | Intelligent Multisensor Heat and CO Detector, Rotary-Addressed, SLC Loop Powered | KIR-HCD

You save

Kidde | Intelligent Multisensor Heat and CO Detector, Rotary-Addressed, SLC Loop Powered | KIR-HCD

No reviews yet Write a Review

SKU:: KD-KIR-HCD

Description
Specifications
FAQs
Documents

The Kidde KIR-HCD puts heat detection and carbon monoxide sensing on a single SLC address, cutting device count and install time on intelligent Kidde fire alarm systems. Rotary-addressed (0-159) for quick commissioning without a laptop, it mounts on any standard Kidde KI-series base and draws power directly from the SLC loop.

Built for the commercial installer

This detector combines rate-of-rise heat sensing (15°F/min), fixed temperature heat sensing (135°F), and electrochemical CO detection in one device. Evaluated to the CO alarm sensitivity limits of UL 2034 and listed under UL521, UL2075, and ULC-s530. Automatic drift compensation keeps the detector calibrated over time, reducing nuisance alarms and maintenance callbacks.

Key features

Two hazards, one SLC address: heat (rate-of-rise + fixed temp) and CO detection in a single device reduces panel point count and wiring
Rotary addressing (0-159): set the address at the detector with two rotary switches - no programming tool required
SLC loop powered: 15.20-19.95 VDC, 51 µA standby - no separate power runs needed
UL/ULC listed: UL521, UL2075, ULC-s530, CSFM - CO sensitivity evaluated to UL 2034
Automatic drift compensation: self-adjusting sensitivity reduces nuisance alarms and extends service life
Multiple base options: standard, relay, isolator, and audible sounder bases for flexible deployment

System requirements

Requires a Kidde Intelligent Fire Alarm Control Panel (FACP) with an SLC loop. Mounts on Kidde KI-series detector bases (KI-SB standard, KI-SB4 4-inch, KI-RB relay, KI-IB isolator, or KI-ABDT/KI-ABLT audible sounder bases). Base sold separately.

Brand:

Kidde Commercial

Form factor:

Ceiling-mount multisensor detector, round, 4.298" dia x 2.316" H

Communication:

Kidde Intelligent SLC loop protocol, rotary addressing (0-159)

Power input:

SLC loop powered, 15.20 to 19.95 VDC

Operating current:

51 µA standby, 68 µA alarm

Detection types:

Rate-of-rise heat, fixed temperature heat, electrochemical CO

Rate-of-rise rating:

15°F/min (9°C/min)

Fixed temperature rating:

135°F (57.2°C). Actual alarm point 129-141°F (53.9-60.6°C)

CO alarm levels (UL 2034):

70 ppm: 60-240 min; 150 ppm: 10-50 min; 400 ppm: 4-15 min

CO false alarm resistance:

30 ppm: 30 days no alarm; 70 ppm: 60 min no alarm

Spacing:

Max. 50 ft. (15.2 m) centers for heat detection

Operating environment:

32 to 100°F (0 to 38°C), 0 to 90% RH, noncondensing

Storage temperature:

-4 to 140°F (-20 to 60°C)

Construction:

High Impact Engineering Polymer, White

Environmental compensation:

Automatic

Compatible detector testers:

Testifire 2000

Compliance:

UL521, UL2075, ULC-s530, CSFM. CO evaluated to UL 2034

Compatible bases:

KI-SB, KI-SB4, KI-RB, KI-RB4, KI-IB, KI-IB4, KI-ABDT, KI-ABLT (sold separately)

Does this detector require a separate CO panel?

No. The KIR-HCD reports both heat and CO alarm conditions to the Kidde Intelligent FACP over the SLC loop. No separate CO detection panel or controller is needed.

What bases are compatible with the KIR-HCD?

Standard (KI-SB), 4-inch (KI-SB4), relay (KI-RB, KI-RB4), isolator (KI-IB, KI-IB4), and sounder bases (KI-ABDT, KI-ABLT). Sounder bases require FX-T3T4 temporal pattern generator. All bases sold separately.

How is the detector addressed?

Two rotary switches on the detector set the SLC address from 0 to 159. No laptop or handheld programming tool is required at the device.

Can this detector be used on Class A SLC loops?

Yes, when mounted on a KI-IB or KI-IB4 isolator base. The isolator base provides built-in fault isolation for Class A circuit protection.

What CO alarm thresholds does this detector use?

Per UL 2034 and CAN/CSA 6.19: 70 ppm triggers alarm in 60-240 minutes, 150 ppm in 10-50 minutes, 400 ppm in 4-15 minutes. False alarm resistance: no alarm at 30 ppm for 30 days or 70 ppm for 60 minutes.

Is this detector UL and ULC listed?

Yes. Listed under UL521, UL2075, ULC-s530, and CSFM. CO alarm sensitivity evaluated to the limits of UL 2034.
