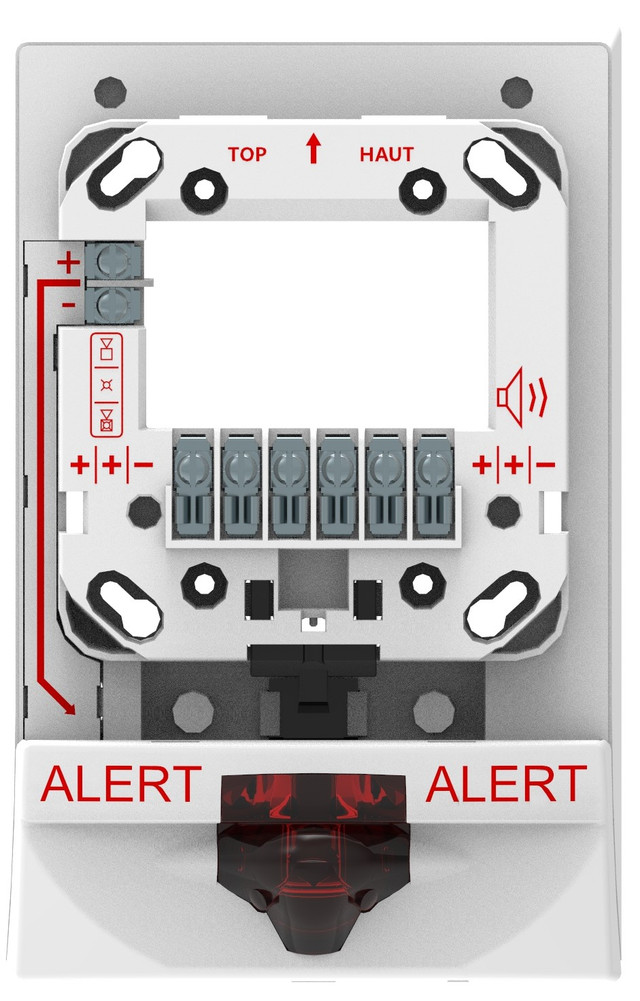

Genesis LED G4SE Wall Mount Strobe Expander, White with ALERT Marking, Red Lens
Kidde Commercial

Genesis LED G4SE Wall Mount Strobe Expander, White with ALERT Marking, Red Lens

SKU KD-G4SEWA-R

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Genesis LED G4SE Strobe Expander adds visual notification to any Genesis speaker, horn, or chime without replacing the appliance. Mount it behind the existing device on a standard 4-inch square box, wire it into the NAC circuit, and the job is done - no separate strobe run, no extra box, no re-pulling wire.

Built for the commercial fire and mass notification installer

The G4SE uses LED technology for longer service life and lower current draw than incandescent strobes. This model ships in a white housing with red lens and ALERT marking, suited for mass notification applications. Field-selectable candela output via onboard DIP switches lets you set the right intensity for the space without swapping hardware. Synchronizable with Kidde CC Series signal modules, booster and auxiliary power supplies, and intelligent and conventional fire alarm control panels.

Key features

  • Pairs with any Genesis notification appliance: speakers, horns, and chimes become speaker-strobes, horn-strobes, or chime-strobes
  • LED strobe technology for extended life and reduced current draw (28 mA DC typical)
  • Field-selectable candela output via onboard DIP switches - adjust intensity on site without hardware changes
  • ALERT marking for mass notification applications (FIRE marking models available separately)
  • Standard 4-inch square box mounting - flush mount, indoor wall applications, no special hardware
  • Synchronizable across the full Kidde ecosystem - CC Series modules, booster/auxiliary supplies, intelligent and conventional panels

System requirements

Requires a North-American 4-inch square electrical box at least 1-1/2 inches deep. Operates on 16-33 VDC or 16-33 VFWR from the fire alarm control panel NAC circuit. Wire with 12-18 AWG conductors. Maximum 20 ohms wire resistance between any two synchronized devices.

Specifications

SKUKD-G4SEWA-R
BrandKidde Commercial
Form factorWall mount strobe expander, white housing
Power input16-33 VDC or 16-33 VFWR (NAC circuit)
Current draw28 mA (DC), 36 mA (FWR)
Candela output15 cd (red lens), field-selectable via DIP switches
Strobe flash rate1 flash per second (approx.)
Lens colorRed
Housing colorWhite
MarkingALERT
Operating temp32°F to 120°F (0°C to 49°C)
Operating humidity0-93% RH (non-condensing)
Storage temp-40°F to 158°F (-40°C to 70°C)
Dimensions8.0" H x 5.12" W x 2.33" D
Wire size12-18 AWG (0.75-2.50 mm²)
MountingFlush, North-American 4" square box, 1-1/2" deep minimum
Synchronization20 Ω max between any two devices; Kidde CC Series modules, booster/auxiliary supplies, intelligent and conventional panels
Installation typeIndoor, dry locations only

Documents and resources

FAQs

What Genesis appliances does the G4SE Strobe Expander work with?
The G4SE pairs with any Genesis wall-mount speaker, horn, or chime. It mounts behind the appliance on the same 4-inch square box, turning speakers into speaker-strobes, horns into horn-strobes, and chimes into chime-strobes.
What electrical box does the G4SE require?
A North-American 4-inch square electrical box at least 1-1/2 inches (38 mm) deep. Flush wall mount only - the G4SE is not rated for ceiling or surface-mount applications.
Can I synchronize multiple G4SE strobes on the same circuit?
Yes. The G4SE synchronizes with Kidde CC Series Signal Modules, Booster and Auxiliary Power Supplies, and Intelligent and Conventional Control Panels. Maximum 20 ohms wire resistance between any two synchronized devices on the NAC circuit.
What is the candela output of the red lens model?
15 cd with the red lens. Candela output is field-selectable via onboard DIP switches. Other lens colors (amber, green, blue) are available in separate SKUs with higher candela ratings.
Is the G4SE rated for outdoor or wet locations?
No. Indoor, dry locations only. Operating temperature range is 32°F to 120°F (0°C to 49°C), humidity 0-93% RH non-condensing. For outdoor notification, see the Genesis Outdoor series.
