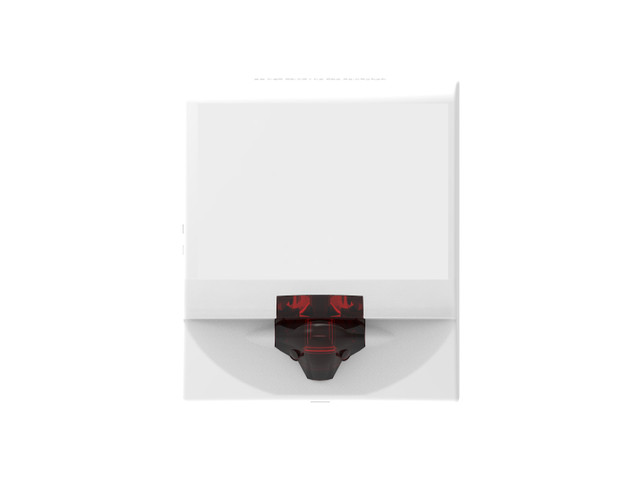

Genesis LED G4 Wall Mount Mass Notification Strobe, White ALERT, Red Lens
Kidde Commercial

Genesis LED G4 Wall Mount Mass Notification Strobe, White ALERT, Red Lens

SKU KD-G4VWA-R

New to SS&Si? Apply for a dealer account
Share
  • Fast shipping from four branches
  • 30-day returns on unopened products
Questions? Call us 866-364-0030The SS&Si dealer team

The Kidde G4VWA-R is a Genesis LED wall mount strobe built for mass notification and emergency communications systems (ECS). It delivers 15 cd of red-lens visual notification on standard NAC circuits, with ALERT marking that separates mass notification signaling from fire alarm functions in the same facility.

Built for the commercial installer

Low current draw (28 mA DC) means more devices per circuit before hitting NAC limits. The G4VWA-R synchronizes out of the box with Kidde CC Series signal modules, booster and auxiliary power supplies, and both intelligent and conventional fire alarm control panels. UL listed (S218, S5389), FM Approved, and FCC compliant.

Key features

  • Mass notification on existing NAC circuits: runs alongside fire alarm Genesis devices without additional wiring infrastructure
  • ALERT marking: clear visual distinction between mass notification and fire alarm signaling per NFPA 72 requirements
  • Low current draw (28 mA DC): maximize device count per circuit run
  • Built-in synchronization: no external sync module required when paired with compatible Kidde panels and power supplies
  • Genesis LED platform: long-life LEDs reduce maintenance callbacks over incandescent appliances
  • Standard electrical box mounting: fits 2-gang or 4-inch square boxes with GRSW room-side wiring plate

System requirements

Requires a GRSW room-side wiring plate (ordered separately). Mounts on standard 2-gang or 4-inch square electrical boxes. Compatible with Kidde intelligent and conventional fire alarm control panels for synchronized mass notification operation.

Specifications

SKUKD-G4VWA-R
BrandKidde Commercial
Form factorWall mount strobe, Genesis LED G4 series
Power input16-33 VDC or 16-33 VFWR
Current draw28 mA (DC), 36 mA (VFWR)
Light output15 cd (red lens)
Flash rate1 fps
Lens colorRed
Housing colorWhite
MarkingALERT
Wire size12-18 AWG
Mounting2-gang or 4-inch square electrical box with GRSW wiring plate (ordered separately)
Operating temp32°F to 122°F (0°C to 50°C)
Operating humidity0-93% noncondensing
Storage temp-40°F to 158°F (-40°C to 70°C)
SynchronizationBuilt-in, compatible with CC Series signal modules, booster/auxiliary power supplies, intelligent and conventional panels
ComplianceUL listed (S218, S5389), FM Approved, FCC
EnvironmentalRoHS Directive 2011/65/EU

Documents and resources

FAQs

Can this strobe run on the same NAC circuit as fire alarm Genesis devices?
Yes. The G4VWA-R operates on standard NAC circuits alongside fire alarm Genesis notification appliances. The ALERT marking visually distinguishes mass notification from fire alarm signaling.
What mounting hardware is required?
The G4VWA-R requires a GRSW room-side wiring plate (ordered separately) and mounts on standard 2-gang or 4-inch square electrical boxes. 12-18 AWG wire.
Does this strobe synchronize with other Genesis devices?
Yes. Built-in sync with Kidde CC Series signal modules, booster/auxiliary power supplies, and intelligent and conventional panels. Max 20 ohms loop resistance between any two devices.
What is the light output of the red lens model?
The red lens delivers 15 cd at 1 flash per second, operating on 16-33 VDC or 16-33 VFWR with a current draw of 28 mA (DC) or 36 mA (VFWR).
Is this strobe rated for outdoor use?
No. The G4VWA-R is rated for indoor use only, with an operating temperature range of 32°F to 122°F and 0-93% noncondensing humidity.
